Combobox (Explainer)

Table of Contents

Background and scope of this document

Background

From the early days of the web, form controls have been pivotal in creating interactive and dynamic user experiences. Elements like <input>, <button>, and <select> were foundational, offering basic interactivity. As the web matured, so did the demands of web designers and developers. They sought more versatile and customizable controls to cater to a myriad of designs and functionalities.

The <select> element, for instance, while functional, lacks flexibility. It offers limited customization, which often leads developers to craft their own solutions. These custom implementations, while visually appealing, often come at the cost of performance, reliability, and most importantly, accessibility.

Recognizing these limitations, the <selectlist> was introduced. This element builds on the foundation of the <select> but provides greater flexibility. The <selectlist> lets developers create a button-triggered dropdown with customizable appearance and behavior. Paired with <listbox>, and inclusive of <option> and <optgroup>, it offers a modern, adaptable, yet accessible web control.

Right now, many websites have their own type of ‘combobox’, but they’re all a bit different. We often see a mix of <input> fields and <datalist> elements trying to do the job, but it’s not quite perfect. By creating a standard <combobox>, we’re aiming to simplify things.

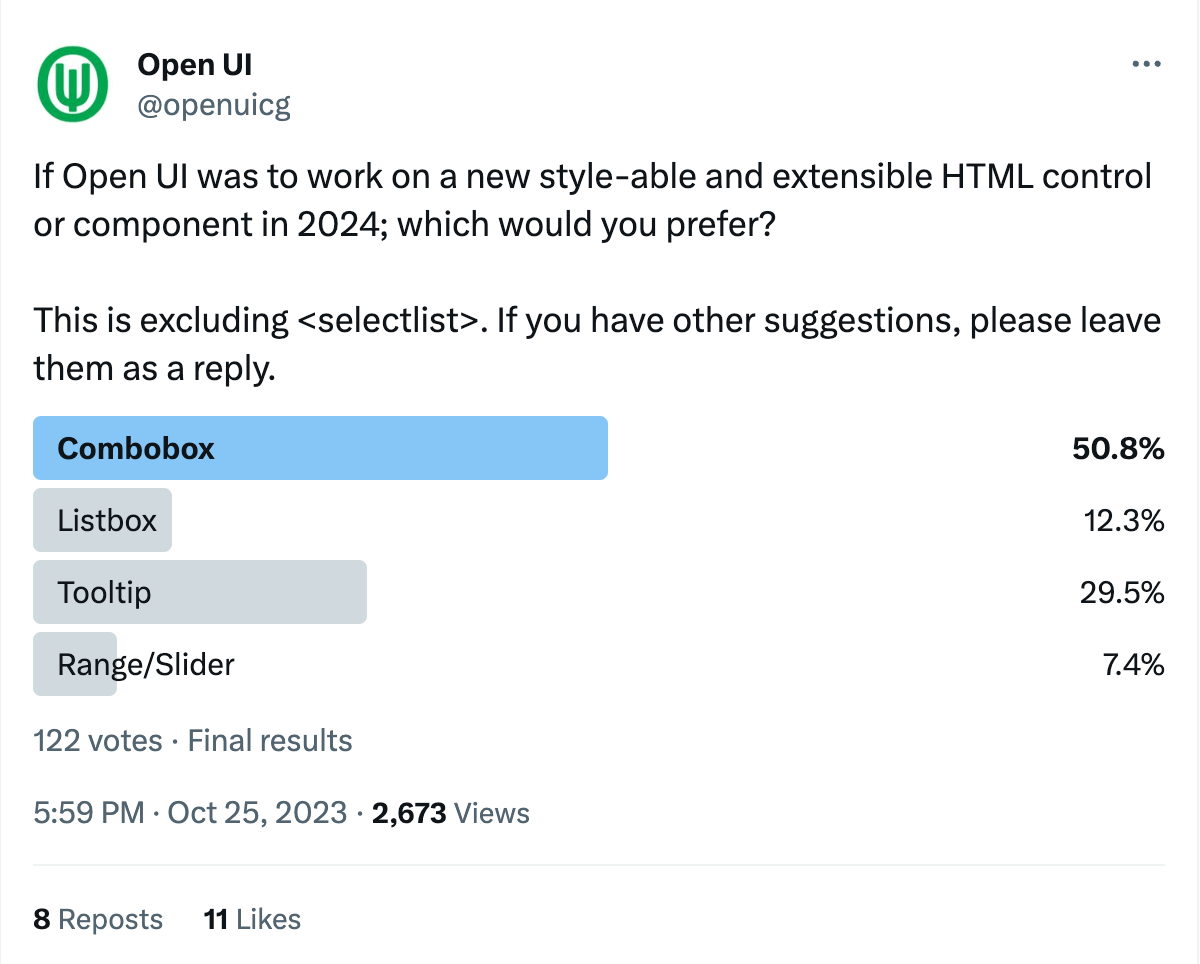

Further highlighting the need for such a solution, a recent Twitter poll run by the Open UI Community Group underscored the widespread demand for a standardized combobox

Combobox twitter poll results

This proposal for <combobox> builds upon the strengths of <selectlist> and <listbox>. It aims to offer a control that is versatile for developers, intuitive for users, and, above all, accessible to all.

By standardizing such elements, we hope to bridge the gap between design demands and the need for performant, reliable, and accessible web controls.

Scope of this document

This document aims to provide a complete view of combo-box utilisation across the web to inform a potential proposal within Open UI. The goal of this document is to propose a very basic anatomy to simplify the initial shipment of <combobox> (or some other name) in the web platform. It will heavily build upon selectlist but provide a better accessible and extensible solution than that of an input bound with datalist.

Out of scope of this document

This document will not be attempting some of the complex scenarios found across the web that leverage various ways in which to represent multi-selected options. Additionally, it does not intend to cover the addition of options that are not available in a <listbox>. It will not cover multi-select but will leverage the resolutions defined by selectlist.

A good analogy for what this document will result in looking like is the Tabs research document.

Anatomy

<combobox>
   <input type=selectlist>
   <listbox>
	<option>One</option>
	<option>Two</option>
   </listbox>
</combobox>
Currently selected option
Optgroup label
Option text
This anatomy would require input to be supported by invokertarget, see issue #839 ?
  • <combobox>: The root container that encapsulates the entire combobox structure. It provides context for the interaction between the input and the listbox.
    • Slots:
      • <input>
      • <listbox>
    • Attributes:
      • search: Indicates the combobox will actively fetch results based on user input.
      • filter: Indicates the combobox will narrow down visible options based on user input.
      • multiple: Allows multiple options to be selected (will be added in future revisions in alignment with selectlist).
  • <input type=selectlist>: This is where the user can type input or view the selected option. It acts as the trigger to display the listbox.
    • Slots:
      • selectedoption (optional): To display the currently selected option from the listbox.
        • Note: Currently input doesn’t support slots
  • <listbox>: The wrapper that contains the <option>(s) and <optgroup>(s). If this part was not provided by the author, then <selectlist> will automatically create one.
    • Slots:
      • <option>
      • <optgroup> (optional)
  • <option>: Represents an individual selectable item within the listbox.
  • <optgroup> (Optional): A container to group related options together.
    • Slots:
      • <legend>: To label the group.
      • <option>: The options within this group.
  • <legend> (Optional, within <optgroup>): Provides a label or title for a group of options within the listbox.

Default Behavior

Just like <selectlist> default behavior, the <combobox> doesn’t need much to get started. Here’s how you can set it up with the basics:

<combobox>
  <option>Option 1</option>
  <option>Option 2</option>
  <option>Option 3</option>
</combobox>

When an author uses it like this, the combobox creates the parts they need: an input to drop down the list, a place showing your selected option, and the listbox itself.

Combobox with selectedoption/optgroup

To showcase the selected option within a combobox, you can include a <selectedoption> element. This allows you to present the chosen value separately from the input element,

<combobox>
    <input type="selectlist" placeholder="Select or type an item...">
    <selectedoption></selectedoption>
    <listbox>
        <option>Apple</option>
        <option>Banana</option>
        <!-- Group of options with a legend -->
        <optgroup>
            <legend>Citrus Fruits</legend>
            <option>Orange</option>
            <option>Lemon</option>
        </optgroup>
        <!-- Another group of options with a legend -->
        <optgroup>
            <legend>Berries</legend>
            <option>Strawberry</option>
            <option>Blueberry</option>
        </optgroup>
    </listbox>
</combobox>

Introducing filter attribute

The filter bool attribute enhances the <combobox> by dynamically narrowing down choices to match user input, making selection faster and more intuitive.

<combobox filter>
    <input type="selectlist" placeholder="Select fruit">
    <listbox>
        <option>Apple</option>
        <option>Apricot</option>
        <option>Banana</option>
        <!-- ... -->
    </listbox>
</combobox>

Here’s how the filter attribute simplifies finding and selecting options in a combobox:

  1. When the combobox loads, it’s ready to filter options.
  2. Start typing, and it will only show you matching options.
  3. Only options that start with what you’ve typed will show up.
  4. Click or press enter to select from the shorter list.
  5. When you select, the list closes and shows your choice.
Combobox showing filtered values

For discussion and suggestions on the naming of the filter attribute, please see Issue #932.

Introducing search attribute

The search attribute adds smart search features to <combobox>. It lets users find options in different ways:

Attribute values:

  • pattern: Matches options against a pattern. For example, typing ”^a” finds options starting with ”a”. definition here.
  • startswith: Shows options that start with the user’s input. Typing ”Ap” will display “Apple” and “Apricot” but not “Banana”. This is the default behavior for <selectlist> definition here.
  • includes : Searches anywhere in the option text. Typing ”a” will display “Apple”, “Apricot”, and “Banana”. definition here.
<combobox search>
    <input type="selectlist" placeholder="Select fruit">
    <listbox>
       <option>Apple</option>
        <option>Apricot</option>
        <option>Banana</option>
        <!-- ... -->
    </listbox>
</combobox>
Combobox showing search results

Join the conversation on the naming and values of the search attribute in Issue #931.

Future: Introduction of multiple attribute

The multiple attribute will be specified in detail in a forthcoming update, in sync with the <selectlist> element’s multi-selection capabilities.

Keyboard Behavior

Details regarding keyboard interaction for the combobox will follow the W3C ARIA Authoring Practices for combobox patterns. For further development and discussions, please see the filed issue.

Appendix

Explored Anatomy Options for <combobox>

Approach 1

<input type="text" list="browsers"  />
<datalist id="browsers">
	<option>firefox</option>
	<option>Chrome</option>
</datalist>

Pros:

  • Native elements

Cons:

  • You can’t achieve multi-select with <datalist>:
  • grouping options or adding icons next to options, the <datalist> approach falls short.
  • Inconsistent Browser Support: While most modern browsers support <datalist>, the appearance and behavior can be inconsistent across different browsers.

Approach 2

<selectlist combobox>
  <input type=selectlist>
  <listbox>
	<option>One</option>
	<option>Two</option>
  </listbox>
</selectlist>

Pros:

  • Leveraging the existing <selectlist>

Cons:

  • Need to rely on an opt-in attribute(combobox) to modify the behavior of <selectlist>.
